QuickJack Europe

Quickjack

Quickjack Europe is avaiable supplied by LiftMotive. LiftMotive is the official distributor in Europe for Quickjack Portable Car Lifts!

QuickJack Europe will make your garage life safer and more efficient. It will eliminate the corner-by-corner you perform with floor jacks during every tire rotation. There will be no more stressing over how much torque you’re applying during brake changes. Sliding under cars for suspension work, oil changes, exhaust system swaps, detailing, etc. will all feel safer, and jobs will take less time. Even detailing jobs will be performed ergonomically and rapidly. As car buffs and gearheads ourselves, we hold one truth above all others: The best way to work is the only way to work.

QuickJack Europe

Most frequent questions and answers

Can I drive over the QuickJack frames?

You can drive “over” the QuickJack frames (a recommended method), but do NOT drive on top of the frames. Driving on the frames could cause damage and void your warranty.

What's the best power supply I should use with the 12-volt DC power unit?

With the 12-Volt DC Hydraulic Power Unit, it can be powered by a Car Battery, Portable 12-Volt Power Pack or Mini Car Jump Starter.

What do the air cylinders on the side of the hydraulic pistons do? Will they always hold air?

The small air cylinders welded to the sides of the main hydraulic cylinders act like air springs. Because the static weight of the lifting frames is minimal, the air cylinders assist lowering the frames after the vehicle’s tires touch the floor, or if the lift was ever raised with no load.

Inflate each air bottle cylinder between 40-50 psi. Be sure to pull the connector off quickly to minimize air loss and don’t forget to replace the dust caps as they help to retain air. The cylinders will require periodic recharging.

How long can I leave QuickJack raised in the air with a vehicle loaded?

Once the lift is raised and firmly positioned onto both safety lock bars, the QuickJack could remain elevated for an indefinite period.

Is it OK to use only one frame to lift?

No. QuickJack is designed to lift an entire vehicle by engaging the OEM recommended lifting points. Any attempt to alter this configuration could be dangerous and will void your warranty.

How fast is QuickJack shipped after I place my order?

We pride ourselves on state-of-the-art warehouse technology to guarantee most of the items you need are available for shipment immediately. Items that are in stock often ship within 48 hours after your order is received.

QuickJack Europe

QuickJack Europe is very easy to set up, even if you’ve never purchased a car lift or worked with hydraulics before. Most components come pre-installed. All you have to do is wrap some thread seal tape, wrench on some fittings and pressurize the secondary air cylinder. The entire lift assembly is delivered in three boxes: two boxes for the frames and one for the power unit. The third box also contains the hoses, lifting blocks and fittings. All you need to supply are the tools and ATF for the power unit.

STEP 1

Lay out the contents of your three boxes

Lay out the frames, parts assembly, power unit and hoses on a clear surface, so you don’t misplace or lose any parts during setup.

STEP 2

Prepare and tighten fittings

The frame assembly, hoses and power unit have some fittings that may need thread seal tape. A quick wrenching will secure and tighten the fittings.

STEP 3

Pressurize air cylinders

One air cylinder on each frame needs to be pressurized. They will rarely need to be pressurized again. A hand/foot pump or air compressor will accomplish the job in no time.

STEP 4

Set up power unit and fill with hydraulic fluid

Ensure the power unit fittings are secure, then funnel in 2.5 quarts of hydraulic oil or ATF fluid (not included).

STEP 5

Final checklist before lift

A few final tasks remain: drain the extra packing oil, ensure the frames are lifting correctly and a final safety inspection.

The one-time setup means practicality and portability become reality. Simply position the frames under the vehicle and push Up on the hand-held pendant control. In 30 seconds or less, the entire car will be 21 inches high off the ground and ready for tire swaps, oil changes and other maintenance.

STEP 1

Roll frames into position

Mounted urethane wheels provide effortless rolling of the jack frames across your floor.



STEP 2

Position frames parallel to each other

Slide both QuickJack frames under your vehicle on a stable floor surface with both lock bars facing out.

STEP 3

Attach zero-leak quick-connect fittings

Connect power unit and the jack frames via hoses with our zero-leak quick-connect fittings.

STEP 4

Connect power unit into an appropriate power source

Connect your 208-240V AC or 12V DC power unit to the appropriate power source to begin lifting.

STEP 5

Raise your vehicle in seconds

Press Up on the pendant control until each jack platform reaches the mid-rise or full-rise position. Press down to settle the arm into the mechanical lock.



QuickJack is easy to collapse and store. In fact, a raised QuickJack can be fully lowered and stowed away in less time than it takes you to reheat yesterday’s leftovers. After the initial setup, you’ll be lifting and lowering your car lift like it’s nothing at all.

MODELBL-3500SLXBL-5000SLXBL-5000EXTBL-7000SLXBL-7000EXTBL-6000XLT

LIFTING CAPACITY1588 kg.2268 kg.2268 kg.3175 kg.3175 kg.2722 kg.
COLLAPSED7,5cm7,5cm7,5cm9cm9cm9cm
MAX RISE (STACKED BLOCKS)508mm542mm542mm548mm548mm548mm
LIFTING POINT SPREAD – MAX1,283mm1,524mm1,676mm1,524mm1,676mm1,925mm
LIFTING POINT SPREAD – MIN678mm749mm902mm749mm951mm1203mm
FRAME WIDTH268mm278mm278mm318mm318mm318mm
FRAME LENGTH1,575mm1,778mm1,905mm1,778mm1,930mm2185mm
OWN WEIGHT (ONE FRAME)27 kg.34 kg.36 kg.44 kg.46 kg.50 kg.
TOTAL WEIGHT82 kg.96 kg.100 kg.110 kg.119 kg.128 kg.

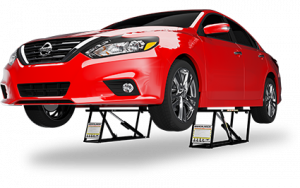

BL-3500SLX

The 3,500-lb. capacity BL-3500SLX car lift is perfect for small-wheelbase vehicles. As the lightest model in our lineup, its frames are easy to transport in and out of the garage or wherever else you need to work. Have fun wrenching at home, and shave off seconds at the track. Great for Miatas!

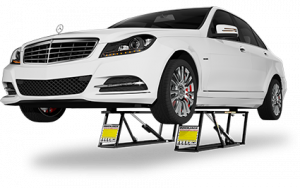

BL-5000SLX

The 5,000-lb. capacity BL-5000SLX car lift is the ultimate tool for DIY’ers and race enthusiasts. It covers most vehicle types and takes up very little space. This lift is extremely versatile and surprisingly lightweight (it’s also our most popular model). Fits Porsche, Corvette, Mustang and more!

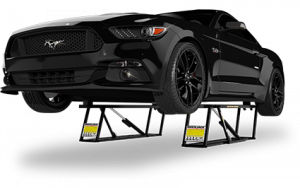

BL-5000EXT

The BL-5000EXT is an extended-length lift with jack support locations that extend 6 inches farther than our SLX models. QuickJack is the best car lift for your home garage or shop, and with the additional reach of the EXT, you’ll service more vehicles than ever. Great for light-duty trucks and SUVs.

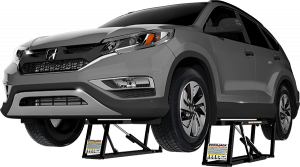

BL-7000SLX

The BL-7000SLX is our heaviest-duty portable car and truck lift system. Reinforced upper frame rails give this lift enough strength to effortlessly raise light-duty trucks and SUVs. For higher ground-clearance vehicles, don’t forget to pick up our truck adapter set. The extra spacers will offer an additional 5″ of lifting height!

BL-7000EXT



The QuickJack BL-7000EXT is a 7,000-lb. capacity, extended-length truck lift that’s specially made for raising heavy-duty powerhouses. Its 66″ lift point reach is ideal for long-wheelbase vehicles, trucks and SUVs. It even fits under most sports cars and sedans.

BL-6000XLT



The 6,000-lb. capacity BL-6000XLT is a super-long portable car lift with one of the widest lift point spreads in the industry. For drivers of some electric cars or vehicles with exceptionally long wheelbases, these frames are the only way to go. Ideal for detailing and wheel service on EVs.
